HOW TO UPDATE SKEETER COMMAND CENTER


Step 1

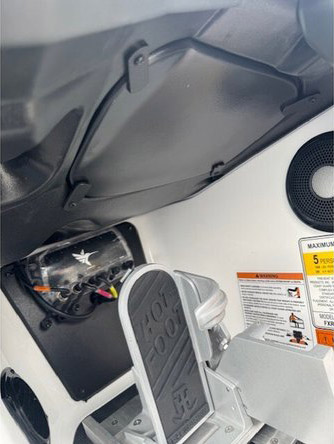

  • Remove the access pan under the console.

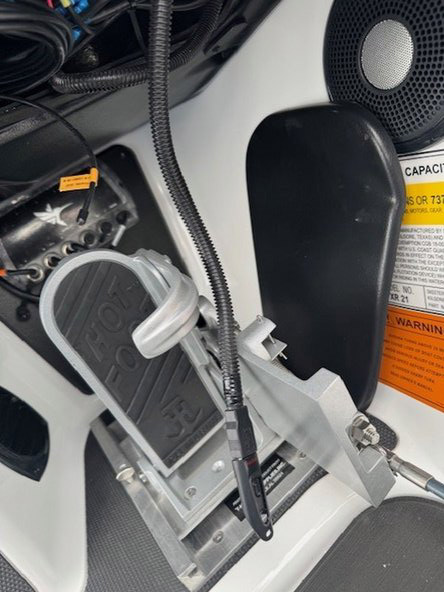

  • Find the USB adapter coming from the Skeeter Command Center screen
  • Using a USB with the new update added plug it in.
    • This USB must only have the update file and the name of the file must be app.hex

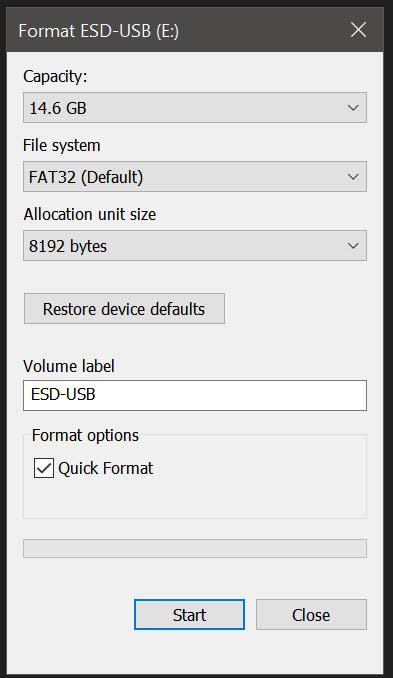

    • The USB must be formatted in FAT or FAT32.

Step 2

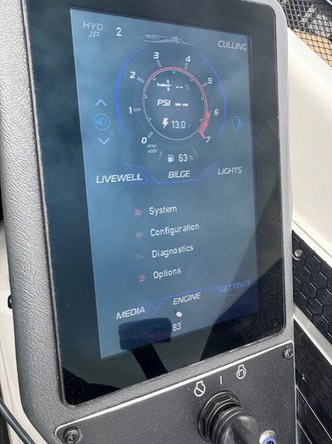

  • Power on system and go to settings page.

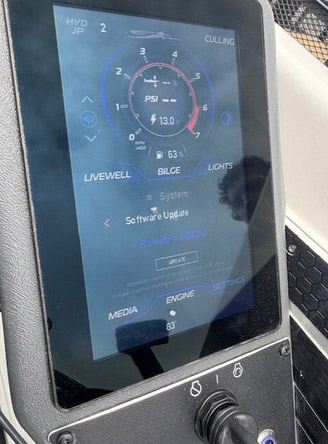

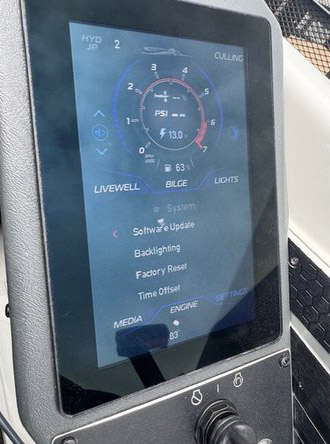

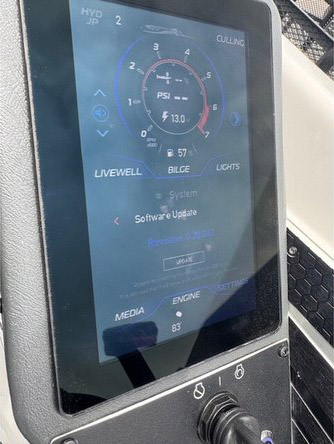

  • Click on System and then Software Update

Step 3

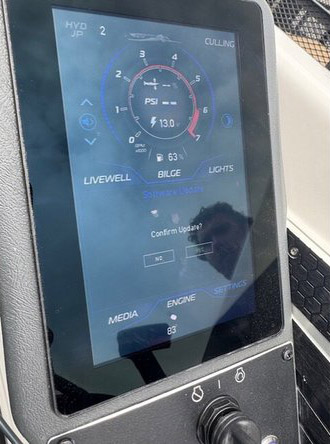

  • Click on Update and then Confirm Update.

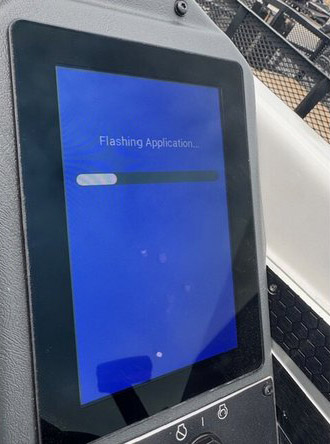

  • Your screen will go through the updating process and then automatically reset once complete

Step 4

  • Confirm the right update is installed by returning to the Software Update page and looking at the latest revision.
